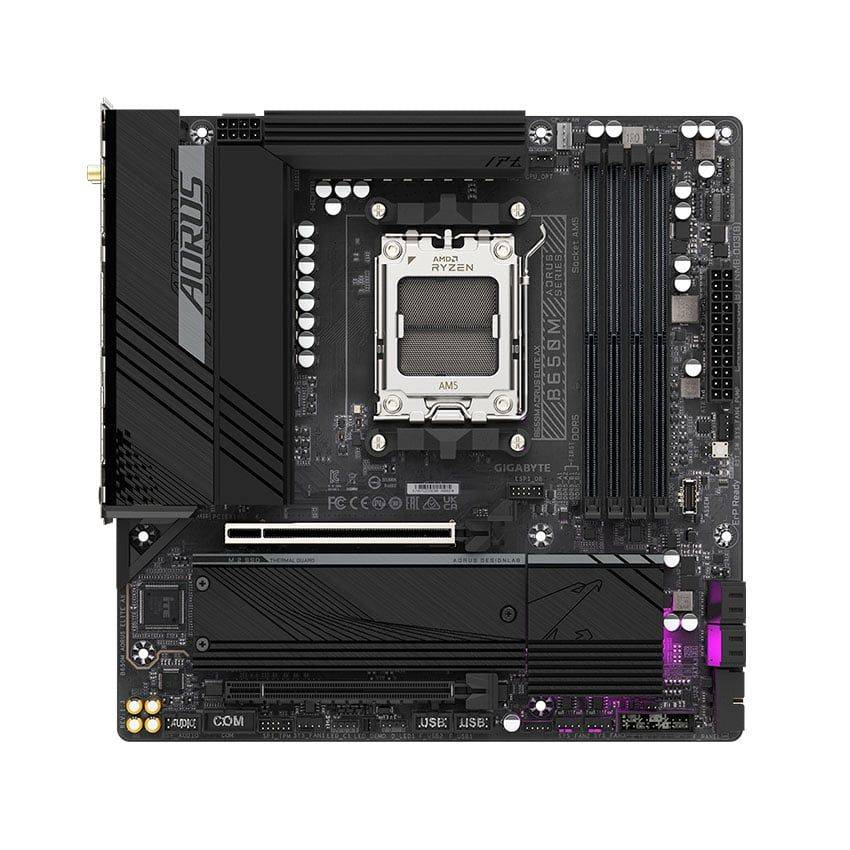

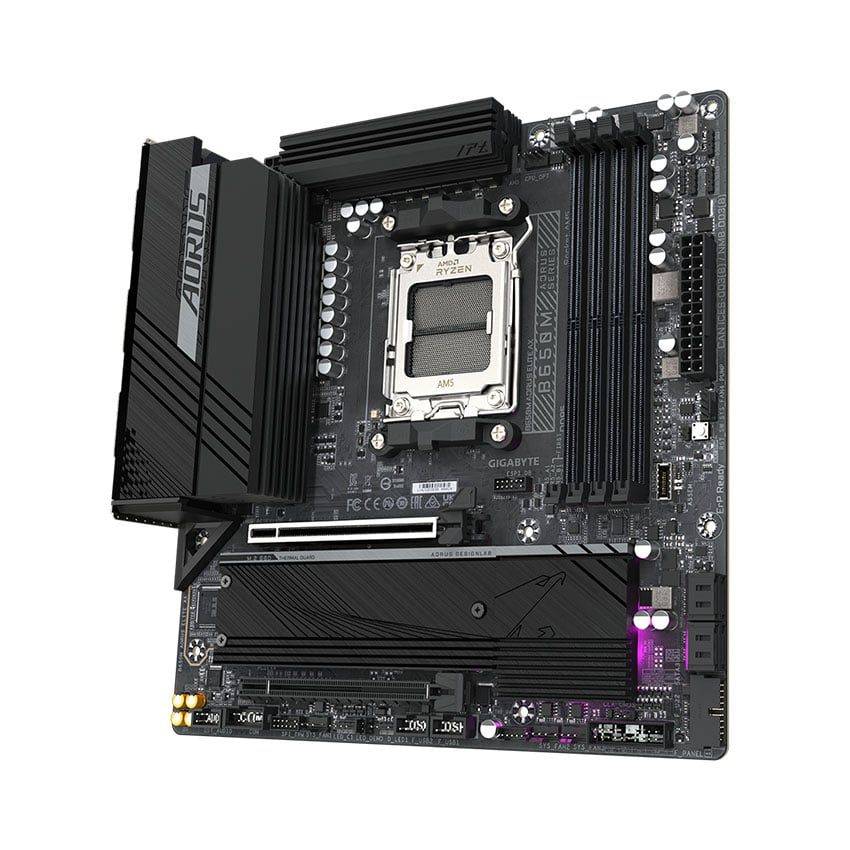

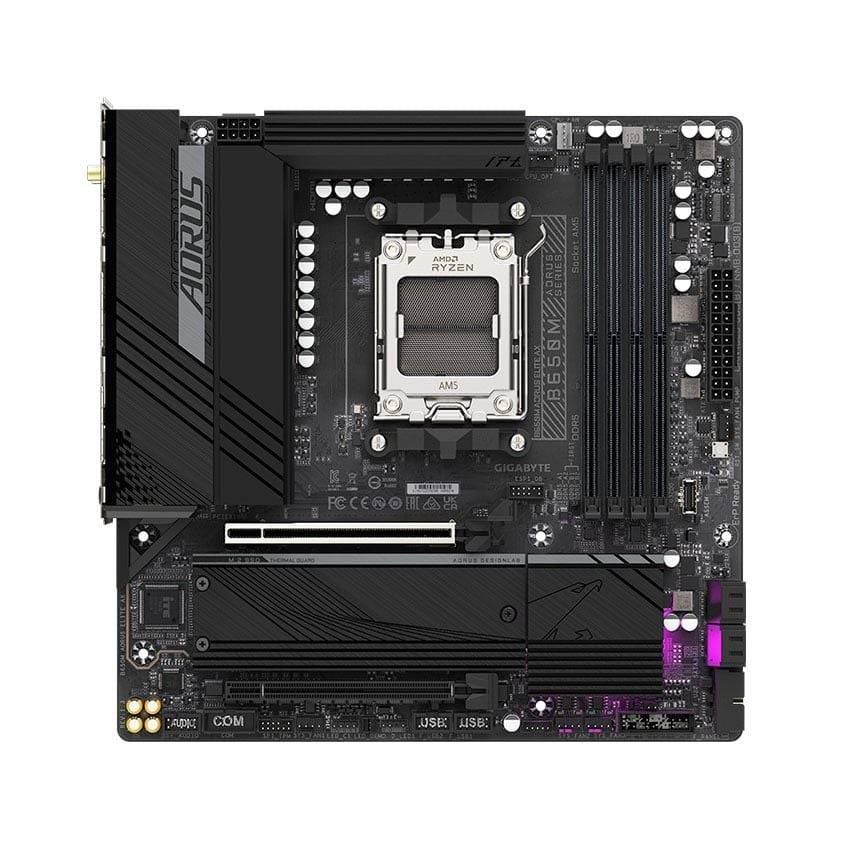

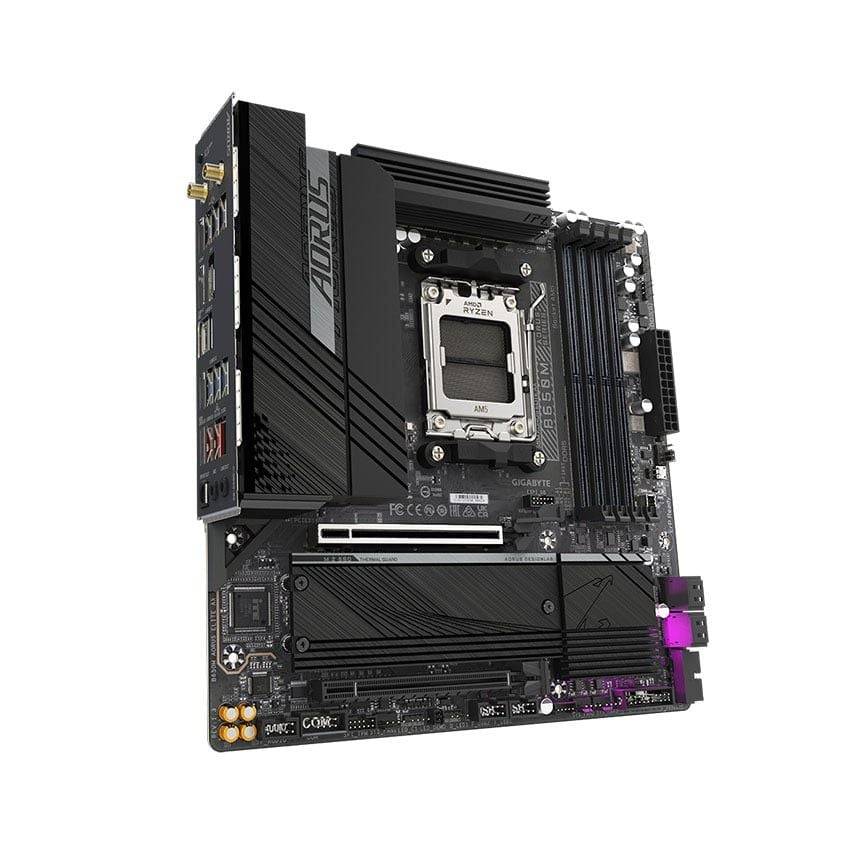

Bo mạch chủ Gigabyte B650M AORUS ELITE AX WIFI DDR5
Danh mục:Mainboard AMD
Mã sản phẩm:MB.A.B650M.GIG.AOR.ELI.AX.WF.D5
4.090.000 ₫
Thông số kỹ thuật
Hãng sản xuất:
GIGABYTE
Form factor:
Micro ATX
Socket:
AM5
Hỗ trợ XMP/EXPO:
AMD EXPO
Loại RAM hỗ trợ:
DDR5
Hỗ trợ RAM:
DDR5-4800, DDR5-5200, DDR5-5333, DDR5-5600, DDR5-6400
Có thể ép xung:
Có
Thường sử dụng cho:
Văn phòng
Hỗ trợ PCIe:
PCIe 5.0
LAN Speed:
2.5Gb
Wi-Fi:
Wi-Fi 6E
Bảo hành:
36 tháng (3 năm)
Tình trạng:
Mới
Mô tả chi tiết
| Sản phẩm | Bo mạch chủ |
| Tên Hãng | GIGABYTE |
| Model | AORUS ELITE AX DDR5 |
| CPU hỗ trợ | AMD Socket AM5 for AMD Ryzen™ 7000 Series |
| Chipset | B650 |
| RAM hỗ trợ | Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.) |
| Khe cắm mở rộng | CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
| Ổ cứng hỗ trợ | CPU: 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU) * Actual support may vary by CPU. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Cổng kết nối (Internal) | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x THB_U4 add-in card connector 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |

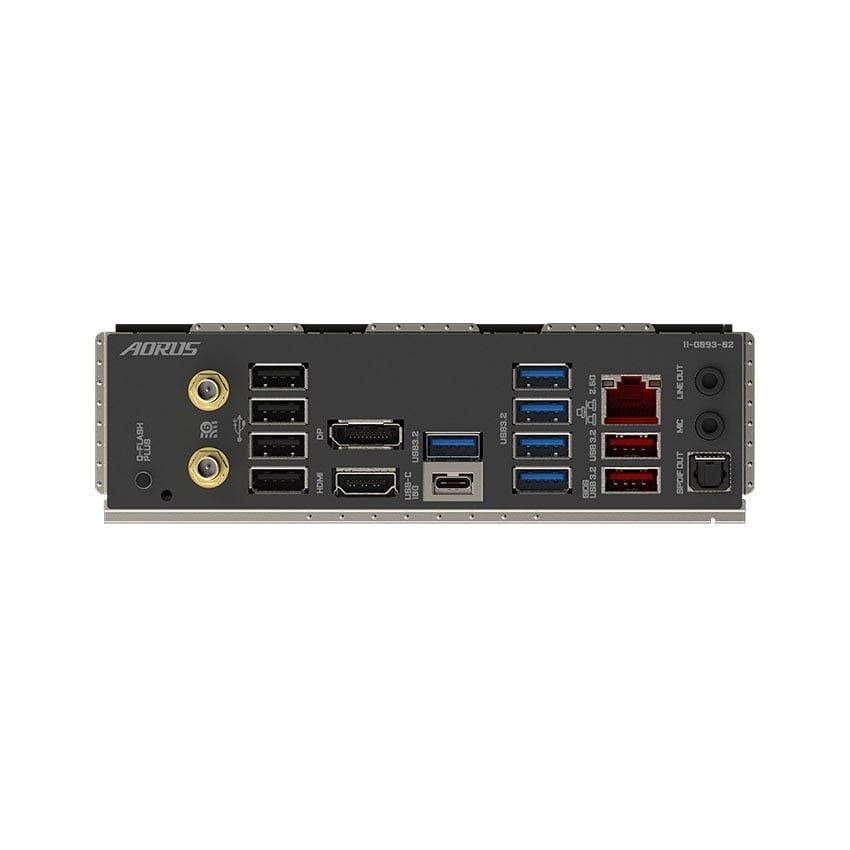

| Cổng kết nối (Back Panel) | 1 x Q-Flash Plus button 2 x SMA antenna connectors (2T2R) 1 x DisplayPort 1 x HDMI port 1 x USB Type-C® port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 5 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks |
| LAN | Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| WIRELESS/ BLUETOOTH | AMD Wi-Fi 6E RZ616 (MT7922A22M) (For PCB rev. 1.0) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate Intel® Wi-Fi 6E AX210 (For PCB rev. 1.1) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
| Kích cỡ | 1.Micro ATX Form Factor; 24.4cm x 24.4cm Micro ATX Form Factor; 24.4cm x 24.4cm |
