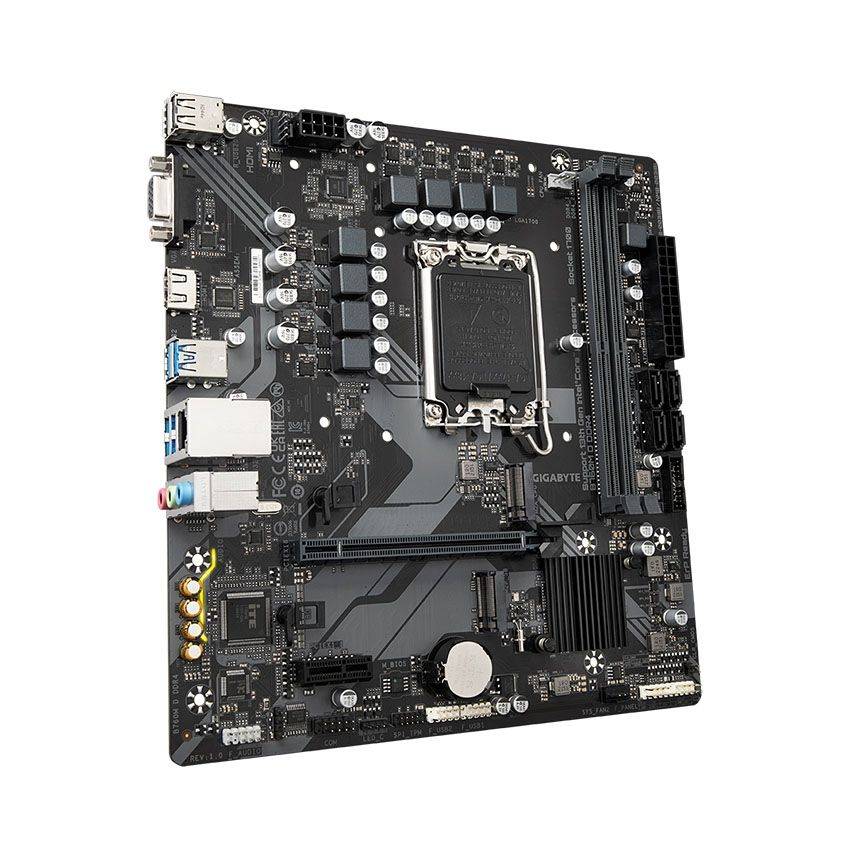

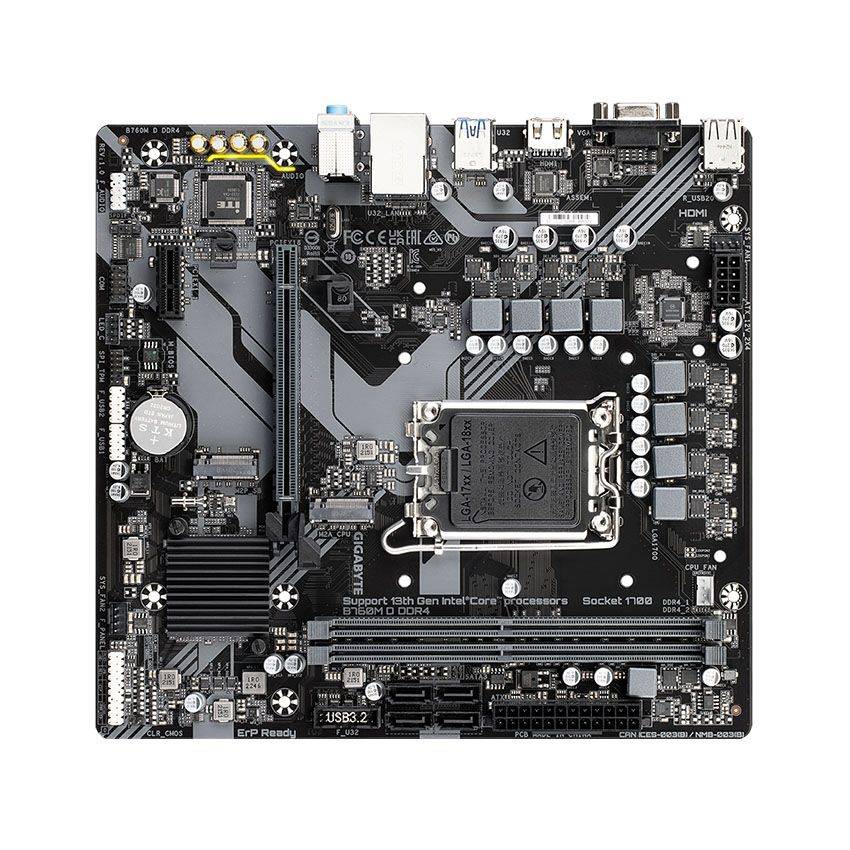

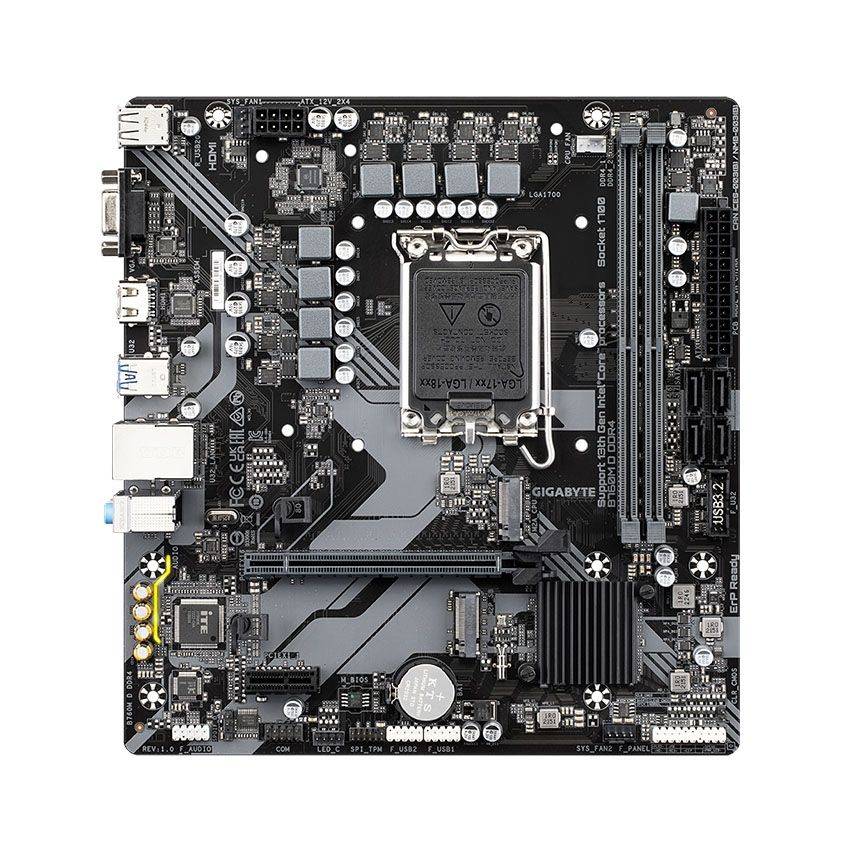

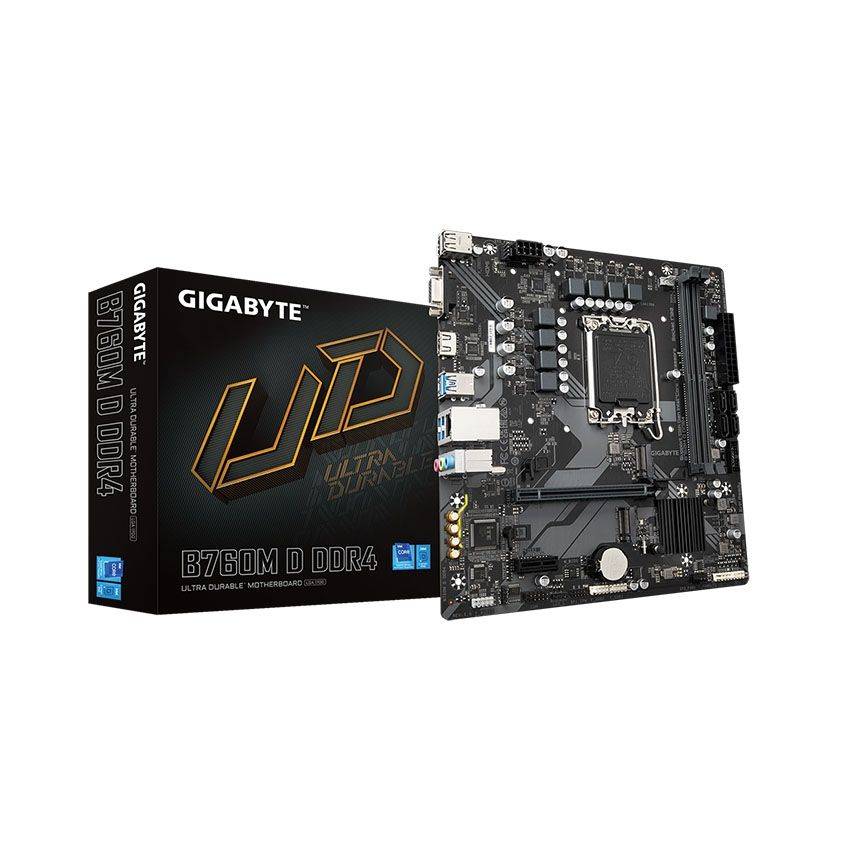

Bo mạch chủ Gigabyte B760M MD DDR4

CPU Support:

• This motherboard supports 13th and 12th Generation Intel Core processors, Pentium Gold, and Celeron processors that use the LGA1700 socket.

Chipset:

• The motherboard is equipped with the Intel B760 Express Chipset.

Memory:

• It supports DDR4 memory modules with speeds ranging from 2133 MT/s to 3200 MT/s.
• There are two DDR4 DIMM sockets, with support for up to 64GB of system memory.
• The motherboard supports both ECC Un-buffered DIMM and non-ECC Un-buffered DIMM memory modules, depending on your preference.
• Extreme Memory Profile (XMP) memory modules are also supported for overclocking.

Onboard Graphics:

• The motherboard has integrated Intel HD Graphics with multiple display outputs, including D-Sub and HDMI ports, which support different resolutions.

Audio:

• It features Realtek Audio CODEC for high-definition audio with support for 2/4/5.1/7.1-channel audio output.
• The functionality of audio jacks can be configured using audio software.
• It also supports S/PDIF Out for digital audio output.

LAN:

• The motherboard comes with a Realtek GbE LAN chip, providing 1 Gbps/100 Mbps Ethernet connectivity.

Expansion Slots:

• It has one PCI Express x16 slot supporting PCIe 4.0 and one PCI Express x1 slot supporting PCIe 3.0 for expansion cards.

Storage Interface:

• There are M.2 connectors for PCIe 4.0 x4/x2 SSD support.
• Additionally, there are four SATA 6Gb/s connectors and support for RAID 0, 1, 5, and 10 for SATA storage devices.

USB:

• The motherboard offers six USB 3.2 Gen 1 ports and six USB 2.0/1.1 ports, with some available on the back panel and others via internal headers.

Internal I/O Connectors:

• Various internal connectors for power, fans, RGB LED strips, storage, and more are provided.

Back Panel Connectors:

• The rear panel includes USB ports, D-Sub and HDMI display outputs, an Ethernet port, and audio jacks.

BIOS:

• It features a 128 Mbit flash BIOS with licensed AMI UEFI BIOS support.

Unique Features:

• Support for Gigabyte Control Center (GCC) for system management.
• Support for Q-Flash for BIOS updates.

Bundled Software:

• Comes with Norton Internet Security (OEM version) and LAN bandwidth management software.

Operating System Support:

• It supports both Windows 11 64-bit and Windows 10 64-bit operating systems.
