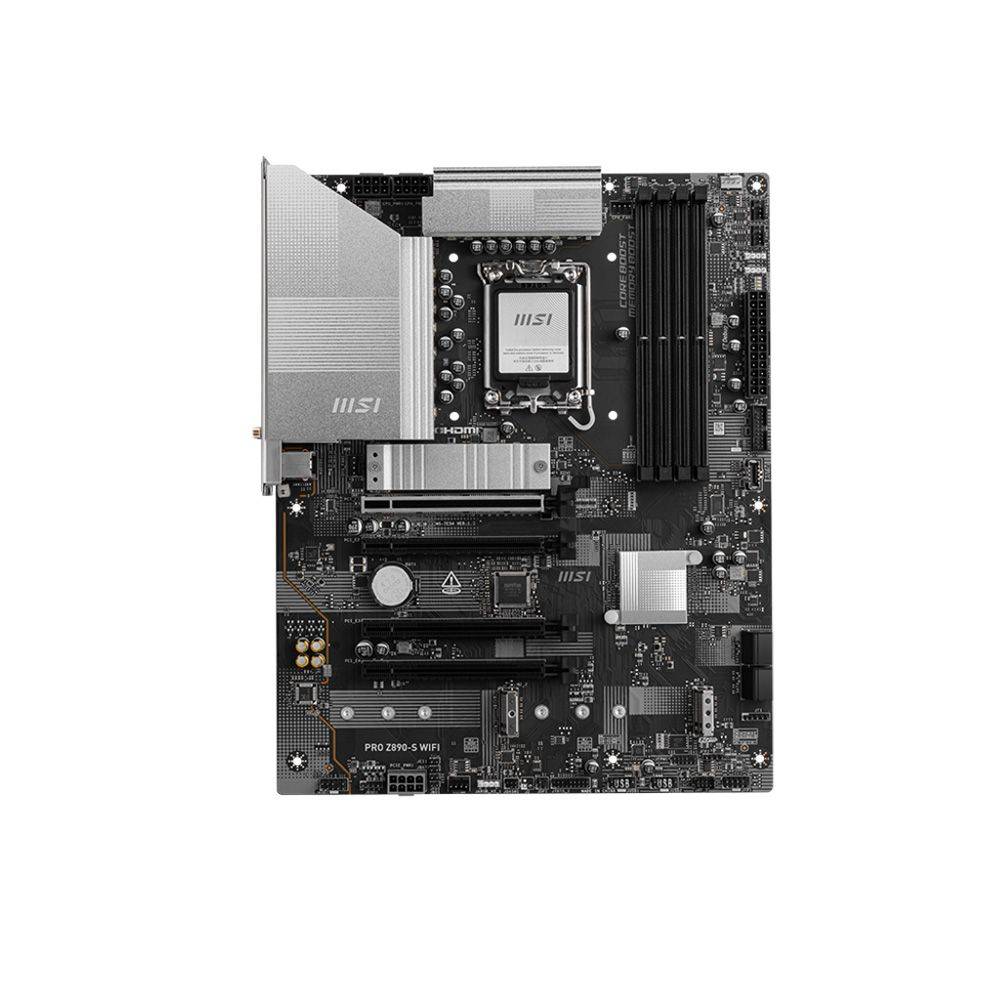

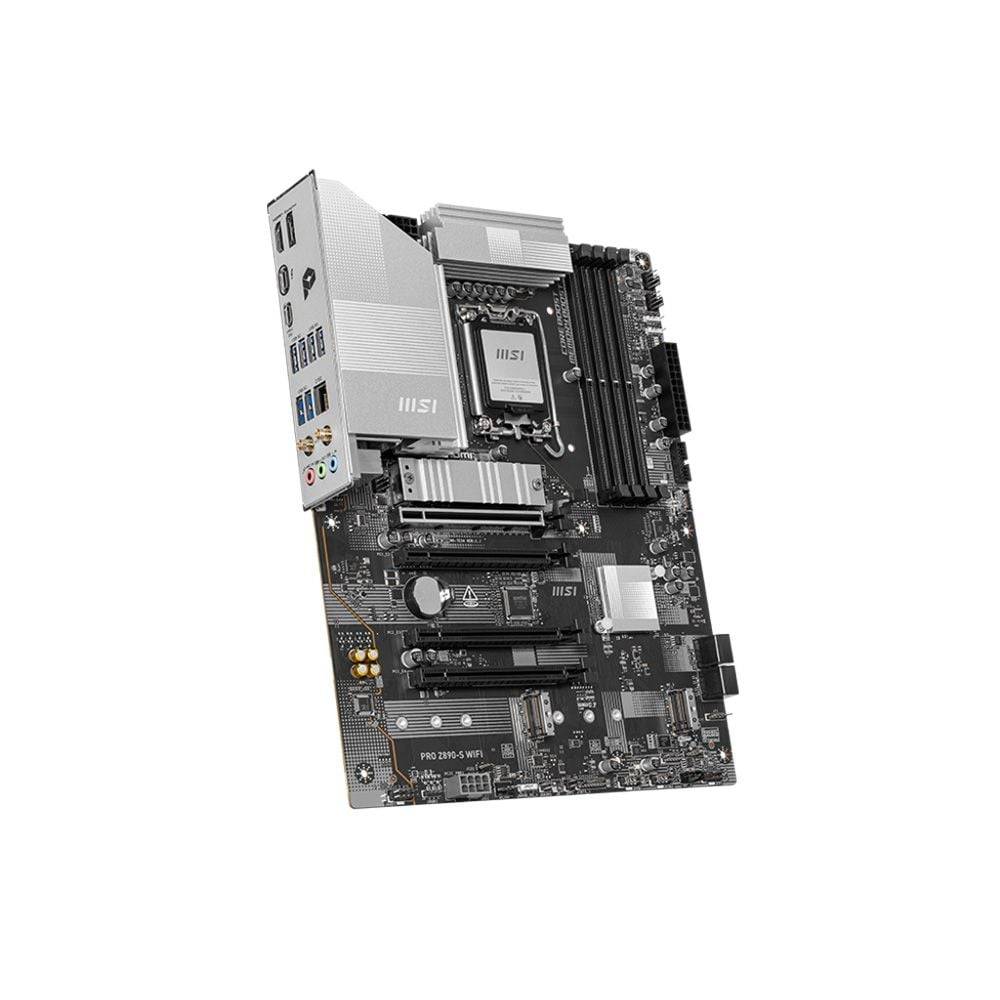

Bo mạch chủ MSI Z890-S PRO WIFI DDR5

Sản phẩm

Bo mạch chủ

Tên Hãng

Mainboard MSI

Model

PRO Z890-S WIFI

CPU hỗ trợ

Intel

Chipset

INTEL Z890

RAM hỗ trợ

4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support 8600 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 8600+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 4800+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s

Khe cắm mở rộng

4x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 4.0 supports up to x4 (From CPU)

Ổ cứng hỗ trợ

3x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G

Cổng kết nối (Internal)

1x Thunderbolt5 card connector(JTBT5, support RTD3)
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports

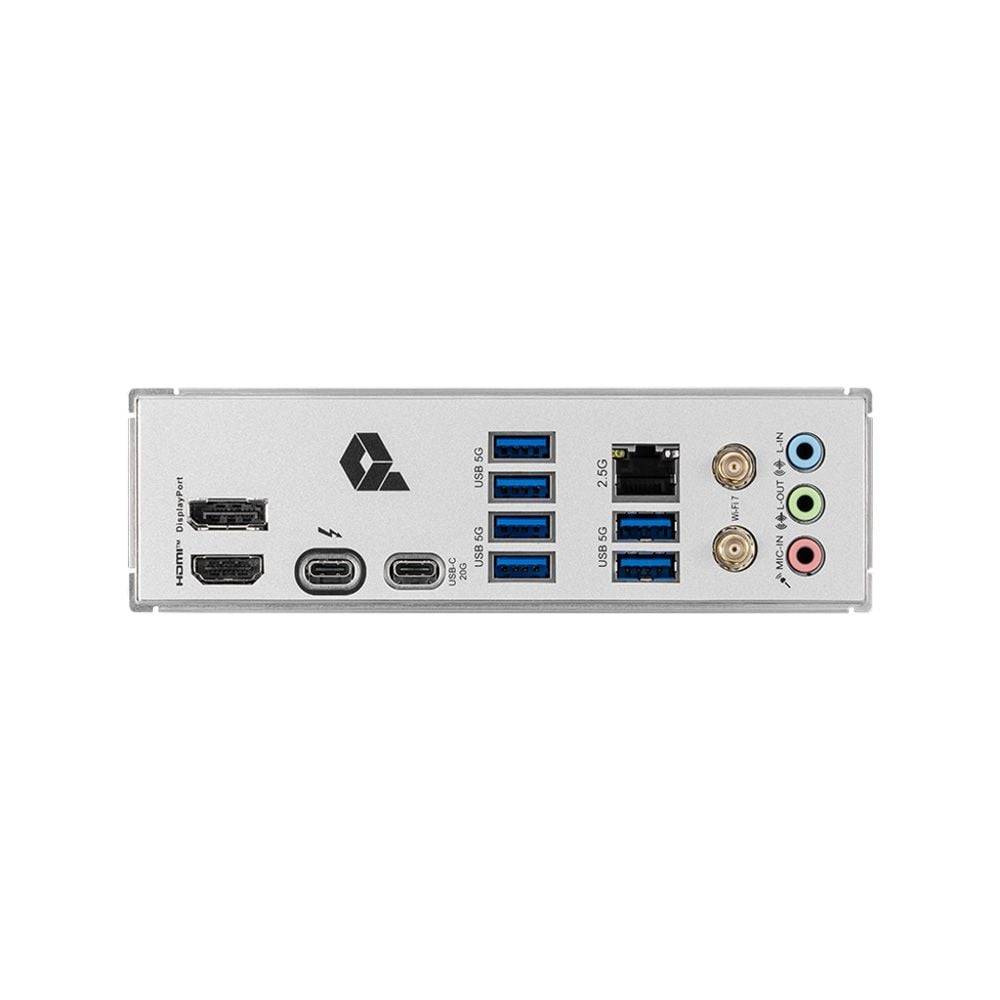

Cổng kết nối (Back Panel)

1. DisplayPort
2. USB 5Gbps Type-A
3. 2.5G LAN
4. Wi-Fi / Bluetooth
5. Audio Connectors
6. HDMI™
7. Thunderbolt™ 4 40Gbps (Type-C)
8. USB 20Gbps Type-C
9. USB 5Gbps Type-A

LAN / Wireless

Realtek^® 8125D 2.5Gbps LAN

Intel^® Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth^® 5.4**, MLO, 4KQAM

Kích cỡ

ATX
243.84mmx304.8mm
