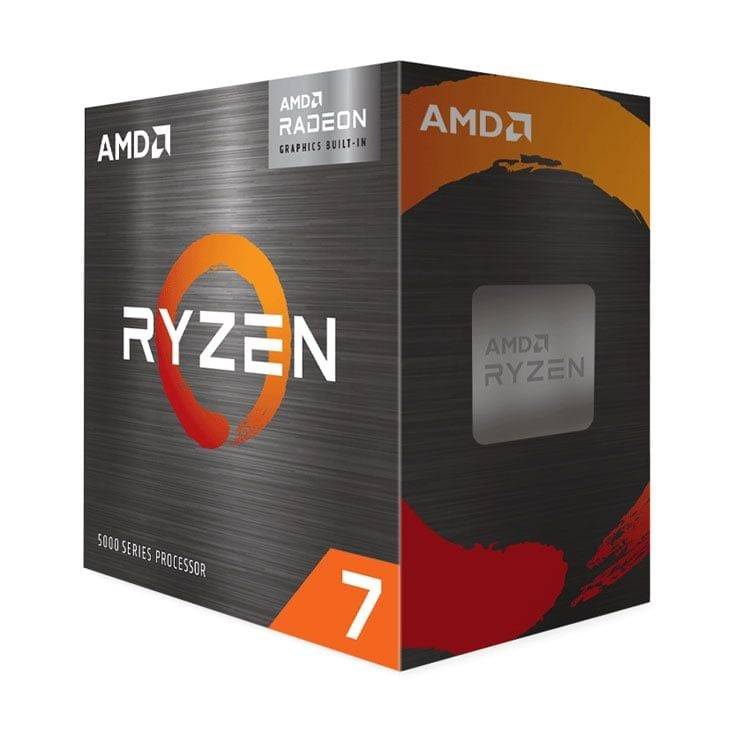

CPU AMD Ryzen 7 5700 | 3.7 GHz up to 4.6 GHz, 8 Cores 16 Threads, AM4

General Specifications:

• Platform: Mainstream Desktop
• Market Segment: Consumer Use
• Regional Availability: Global, China, NA, EMEA, APJ, LATAM
• Former Codename: "Cezanne"
• Architecture: "Zen 3"
• # of CPU Cores: 8
• # of Threads: 16
• Max. Boost Clock: Up to 4.6GHz
• Base Clock: 3.7GHz
• L1 Cache: 512KB
• L2 Cache: 4MB
• L3 Cache: 16MB
• Default TDP: 65W
• AMD Configurable TDP (cTDP): 45-65W
• Processor Technology for CPU Cores: TSMC 7nm FinFET
• CPU Compute Die (CCD) Size: 180mm²
• Package Die Count: 1
• Unlocked for Overclocking: Yes
• CPU Socket: AM4
• Socket Count: 1P
• Supporting Chipsets: X570, X470, X370, B550, B450, B350, A520
• CPU Boost Technology: Precision Boost 2
• Instruction Set: x86-64
• Supported Extensions: AES, AMD-V, AVX, AVX2, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
• Thermal Solution (PIB): AMD Wraith Stealth
• Max. Operating Temperature (Tjmax): 95°C
• Launch Date: 4/4/2022
• Operating System (OS) Support: Windows 10 - 64-Bit Edition, RHEL x86 64-Bit, Ubuntu x86 64-Bit

Connectivity:

• USB Type-C® Support: Yes
• Native USB 4 (40Gbps) Ports: 0
• Native USB 3.2 Gen 2 (10Gbps) Ports: 4
• Native USB 3.2 Gen 1 (5Gbps) Ports: 0
• Native USB 2.0 (480Mbps) Ports: 0
• Native SATA Ports: 2
• PCI Express® Version: PCIe 3.0
• Native PCIe® Lanes (Total/Usable): 24 / 20
• Additional Usable PCIe Lanes from Motherboard:
  • AMD X570: 16x Gen 3
  • AMD X470: 2x Gen 3
  • AMD X470: 8x Gen 2
• AMD X570: 16x Gen 3
• AMD X470: 2x Gen 3
• AMD X470: 8x Gen 2
• NVMe Support: Boot, RAID0, RAID1, RAID10

Memory:

• System Memory Type: DDR4
• Memory Channels: 2
• System Memory Subtype: UDIMM
• System Memory Specification: Up to 3200MT/s
• Max Memory Speed:
  • 2x1R DDR4-3200
  • 2x2R DDR4-3200
  • 4x1R DDR4-2933
  • 4x2R DDR4-2667
• 2x1R DDR4-3200
• 2x2R DDR4-3200
• 4x1R DDR4-2933
• 4x2R DDR4-2667
• ECC Support: No

Graphics:

• Integrated Graphics: No
• Graphics Model: Discrete Graphics Card Required
