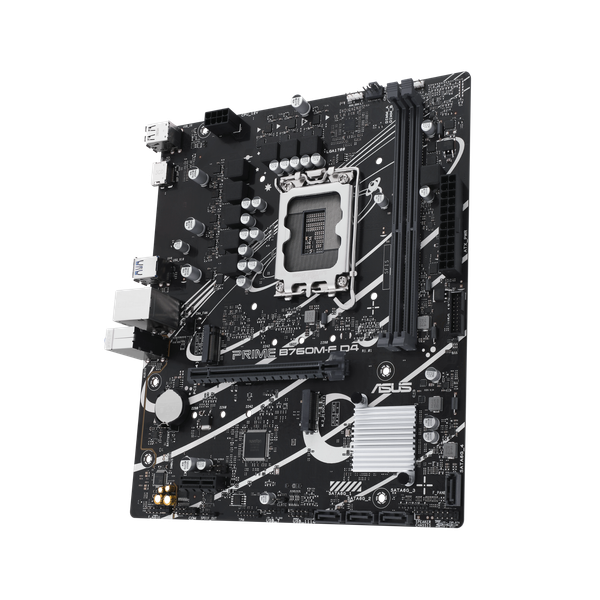

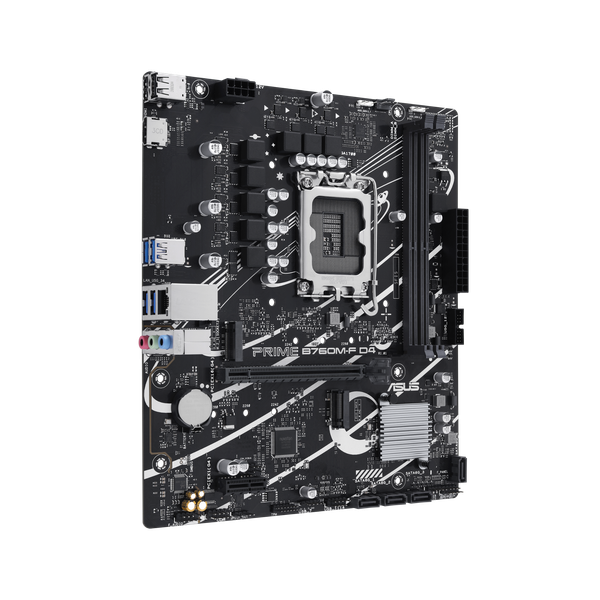

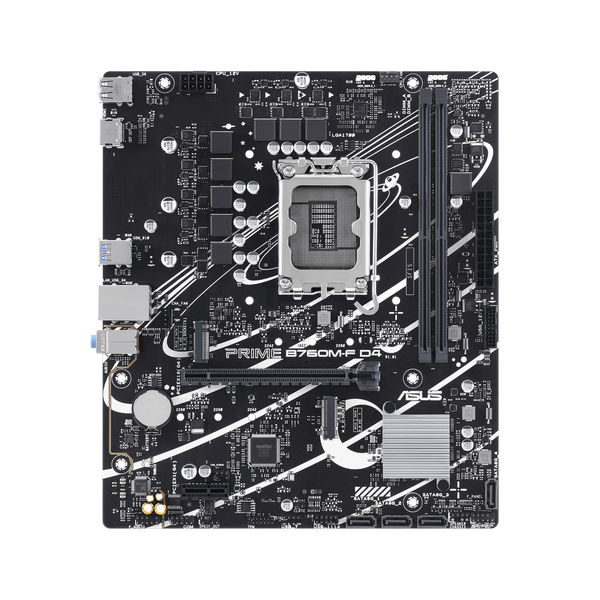

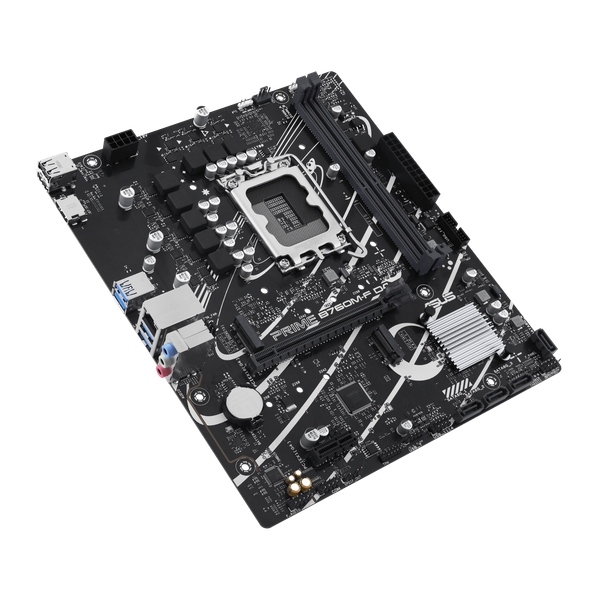

Bo mạch chủ ASUS B760M PRIME MF DR4
Danh mục:Mainboard Intel
Mã sản phẩm:MB.I.ASU.B760M.PRM.MF.D4
2.090.000 ₫
Thông số kỹ thuật
Hãng sản xuất:
ASUS
Form factor:
Micro ATX
Socket:
LGA1700
Form factor:
DIMM
Hỗ trợ ECC:
Không hỗ trợ
Loại RAM hỗ trợ:
DDR4
Hỗ trợ RAM:
DDR4-2133, DDR4-2400, DDR4-2666, DDR4-2933, DDR4-3200
Thường sử dụng cho:
Desktop (PC), Gaming, Đồ họa
Hỗ trợ PCIe:
PCIe 4.0
LAN Speed:
1Gb
Wi-Fi:
Không có Wi-Fi
Audio Channels:
7.1
Bảo hành:
36 tháng (3 năm)
Tình trạng:
Mới
Mô tả chi tiết
Socket: LGA 1700 - Compatible with 14th, 13th, and 12th Gen Intel Core processors
Memory:
- 2 DIMM slots (supports up to 2 RAM sticks)
- Supports DDR4 memory
- Maximum RAM capacity: 64GB
- Speeds supported:
- Up to 5333 MHz (overclocked)
- Down to 2133 MHz
- Non-ECC, Un-buffered
Storage:
- 2x M.2 slots (M key, type 2242/2260/2280) supporting PCIe 4.0 x4 mode for high-speed storage
- 4x SATA 6Gb/s ports for traditional hard drives and SSDs
Graphics:
- 1x HDMI port for connecting a monitor
Expansion Slots:
- 1x PCIe 4.0 x16 slot for graphics cards
- 1x PCIe 4.0 x1 slot for other expansion cards
Networking:
- 1x Realtek 1Gb Ethernet port for wired internet connection

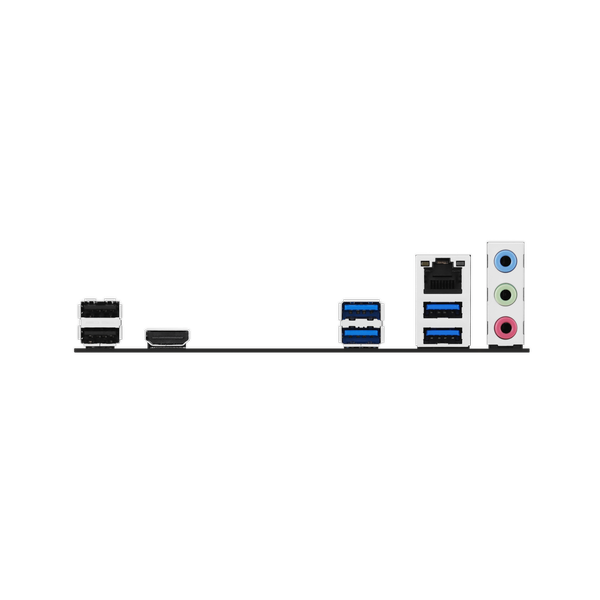

USB:
- Rear Panel:
- 4x USB 5Gbps ports (Type-A)
- 2x USB 2.0 ports (Type-A)
- Front Panel (via headers):
- Supports up to 2 additional USB 5Gbps ports
- Supports up to 3 additional USB 2.0 ports
Audio:
- Realtek 7.1 Surround Sound audio codec
- Supports high-quality audio playback (up to 24-Bit/192 kHz)
- Audio enhancements like shielding and dedicated capacitors
Form Factor:
- micro-ATX (compact size) - Dimensions: 9.6 inch x 8.3 inch (24.4cm x 21.1cm)
Operating System:
- Windows 11 and Windows 10 (64-bit)
Additional Features:
- Fan headers for CPU and chassis cooling
- Addressable Gen 2 headers for RGB lighting control
- TPM header for security features
- Clear CMOS header for resetting BIOS settings

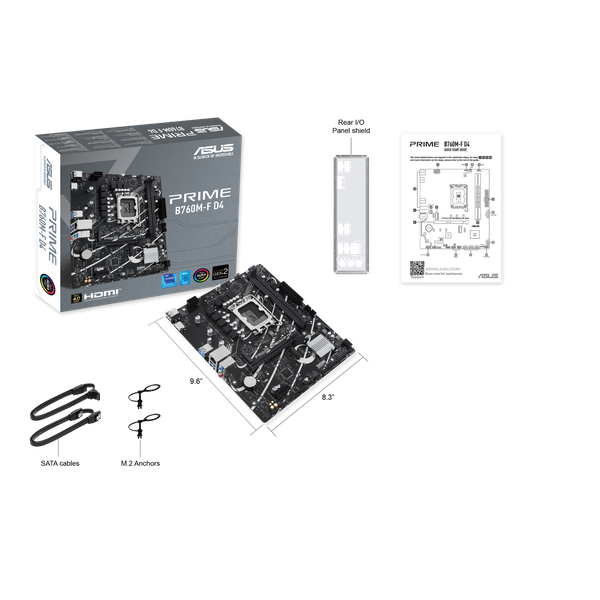

Accessories:
- SATA cables
- I/O shield
- M.2 anchors
- Quick start guide
